500 kg welding positioner with center bore equipted with welding chuck BYT-500B50 manufacturer from China Hangzhou North Equipment Co., Ltd.

500 kg welding positioner with center bore equipted with welding chuck

Payment Terms:	T/T,L/C,WU,
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: BYT-500B50

Production Capacity: 100

Delivery Date: within one month

Type: BYT-500

Certificate: CE, C-tick

Model: BYT-500B50

Means of Transport: Ocean,Land,Air,

Packing: Export wood box

Brand Name: Hznorth

Name: welding positioners, weldin...

Service: OEM , ODM

Capacity(0°/90°): 250/500kg

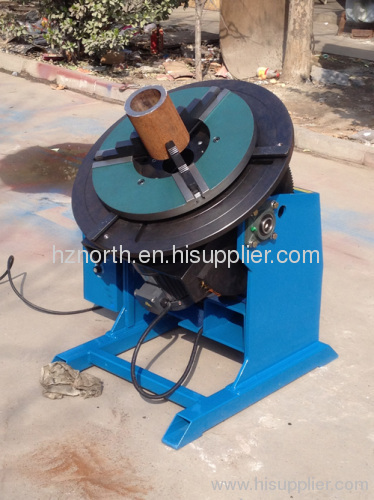

500 kg welding positioner with center bore equipted with welding chuck. Capacity:250/500kg. Table dia.:690mm. Hole Dia.:100

Specification of BYT welding positioners with center bore:

Modle	BYT-50	BYT-200	BYT-500
Power Input	AC220V50HZ	AC220V50HZ	AC380V50HZ
Rotation Motor	DC24V 90W	DC220V 160W	AC 0.55Kw
Capacity(0°/90°)	50/ 25Kg	200/100 Kg	500 /250Kg
Center of Gravity	100mm	100mm	200mm
Eccentricity	100mm	100mm	200mm
Table Dimension	Ø340mm	Ø390mm	Ø690 mm
Rotation Speed	1—5rpm	0.5—4rpm	0.3—2.5rpm
Tilt Range	0--90°	0--90°	0--90°
Center Hole's Dim.	Ø25mm	Ø45mm	Ø100mm
Suitable Welding Chuck	D-200	D-200/300/4000	D-200/300400/500

Advantage of the automatic pipe welding positioners with center bore:

1, While it is welding, through hole positioner is convenient for the pipe to be clamped and positioned, so it has improved the accuracy degree of welding.

2, While the pipe is welded, the through hole positioner will protect the gas when it go through the internal pipe, then it has improve the efficiency and quality of welding.
