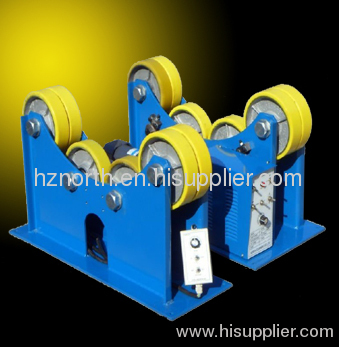

Specifications of NHTR-3000 welding roller rotators:
Model | NHTR-3000 |
Power Input | 1Phase,AC220V,50/60Hz |
Turning Capacity | 3000kg |
Load Capacity | 3000kg |
Max. Speed | 1500mm/min |
Diameter Range | Φ40-1400mm |
Drive Motor | AC220V/ 200W |
Roller Type | NH,50MM(W)*200MM(Φ) |
Dimension | (Drive):800*370*360mm (Idler):800*260*360mm |
Net Weight | Drive120kg,Idler80kg |
Advantage of 3000kg Welding Roller Rotators:
1. This roller rotator has high power, big output torque;
2. DC stepless speed regulation, wide speed adjustment range;
3. The diameter scope of work pieces applied is widened by equipped with two sets of roller wheels;
4. With compact, simple and light structure, it adapts to various working environment;
5. This roller rotator is equipped with manual control box, the initiation and termination of roller wheel frame are easily taken under controlled.
6. The manual control box can real-time control the rotating speed, on/off, positive/reverse rotation of roller wheel frame;
7. Roller rotator applies to the welding and cutting process of slender work pieces.
